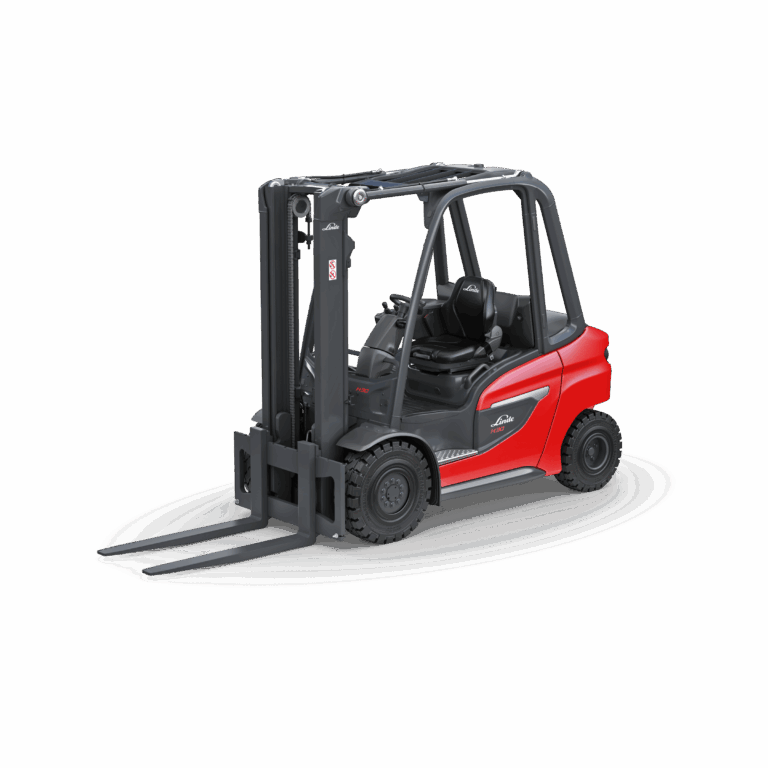

H 20-35 Series 1202, Linde. Diesel/LPG counterbalance truck

The IC truck H20–H35 is powerful, easy to operate, robust, low-maintenance, and versatile. The forklift for loads between 2,000 and 3,500 kilograms is particularly well suited for high loads in multi-shift operation and assignments in the harshest outdoor conditions.

Technical specifications

Fuel
Diesel
Minimum lifting capacity
2000 kg
Maximum lifting capacity
3000 kg
Minimum lifting height
3030 mm
Maximum lifting height
6880 mm

Looking for effective technology?

Get a personalized quote and find out how much you can save. Enter your email address and we will send you a personalized solution.

Thank you, request sent!

Hydrostatic drive, dual pedal control, Linde Load Control, and optimal visibility ensure precise interaction between man and machine. Design details combined with intelligent assistance systems guarantee the highest possible levels of safety. The H20–H35 can be integrated into software systems, e.g. for fleet management, via wireless data transmission. The truck fulfills the latest EU 5 (2016/1627) exhaust emission regulations and it even undercuts the required emissions massively.

Safety

  • Outstanding visibility of the load and environment
  • Linde Curve Assist reduces the speed when cornering
  • Lift loads safely with Linde Load Assist
  • Multiple optional light and warning solutions

Ergonomics

  • Intuitive operating concept for fatigue-free working
  • Decoupled operator’s workstation protects against vibrations
  • Optimal comfort thanks to wide range of seat variants
  • Standard 3.5-inch display

Handling

  • Precise control of hydraulic functions with Linde Load Control
  • Dual pedal control for fast reversing
  • High residual load capacities thanks to overhead tilt cylinders
  • Individually programmable multi-function buttons as an option

Service

  • Robust truck construction
  • Long maintenance intervals thanks to zero-wear components
  • Hydraulic oil change after 6000 operating hours
  • Linde Engine Protection System (LEPS) protects against engine damage
  • Servicing is easy thanks to generous service panels
