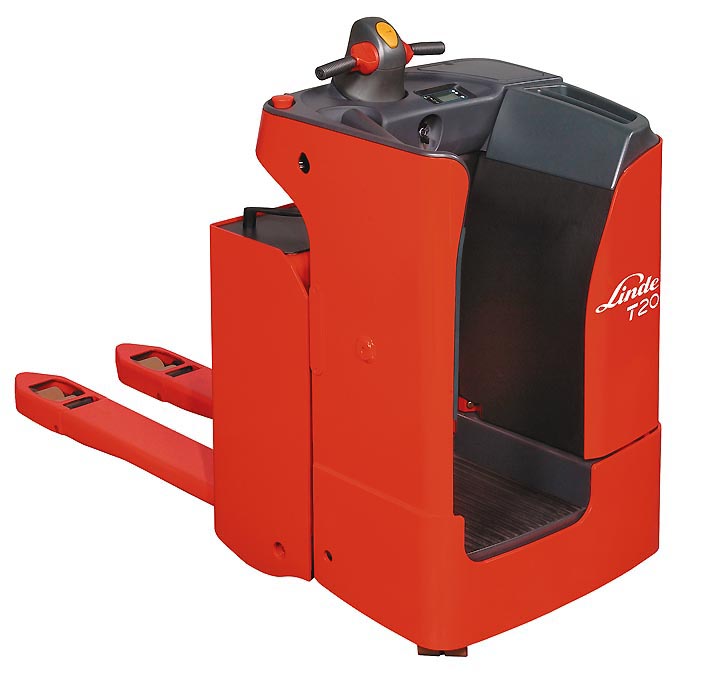

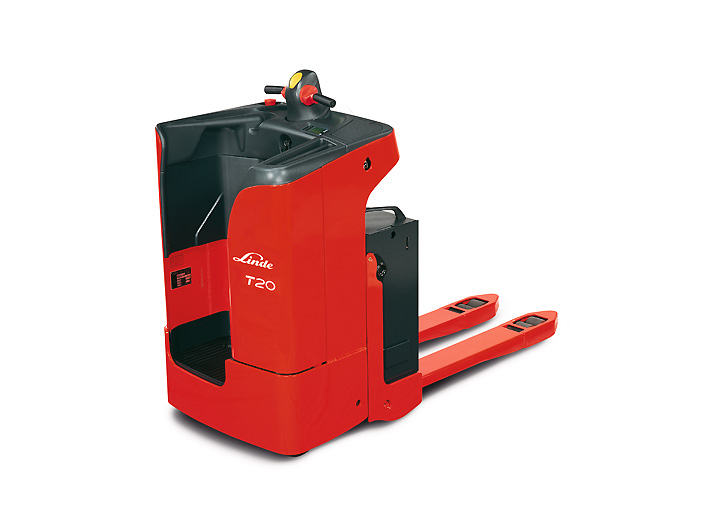

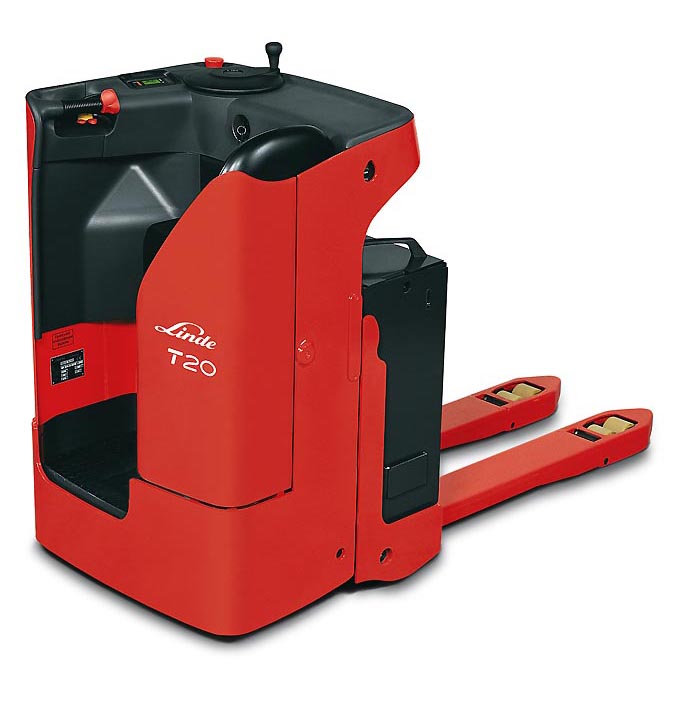

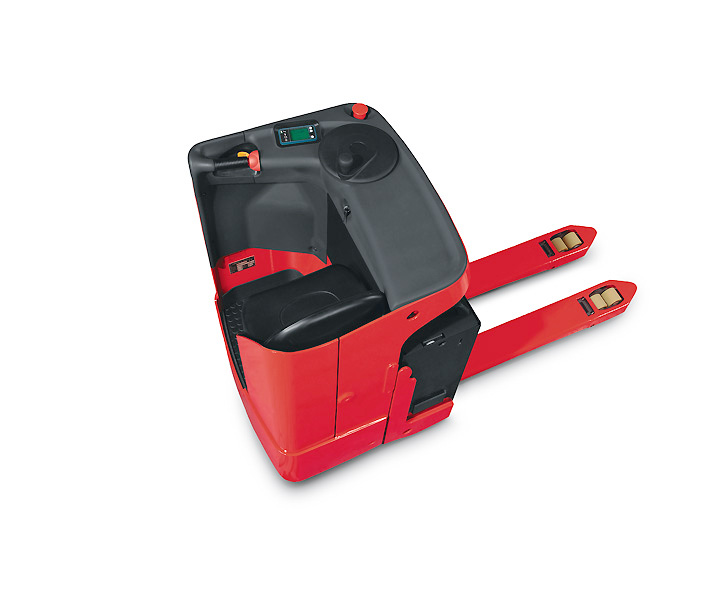

T20 SF, Linde, pallet truck

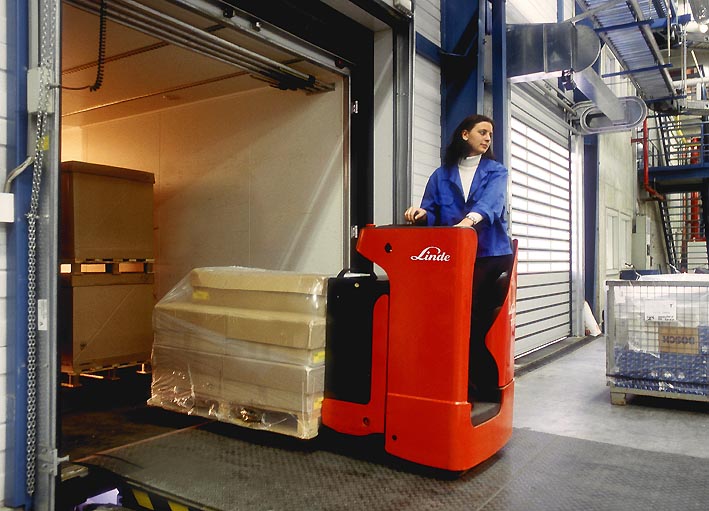

The Linde T 20 SF stand-on pallet truck provides the optimum solution for applications requiring rapid internal pallet transfers, marshalling duties and lorry loading/unloading.

Technical specifications

Power steering
Included
Automatic speed reduction when cornering
Included
Battery
24V/345-500Ah
Driving speed
8/10 km/h
Management
On foot
Maximum lifting capacity
2000 kg
Maximum lifting height
210 mm

Looking for effective technology?

Get a personalized quote and find out how much you can save. Enter your email address and we will send you a personalized solution.

Thank you, request sent!

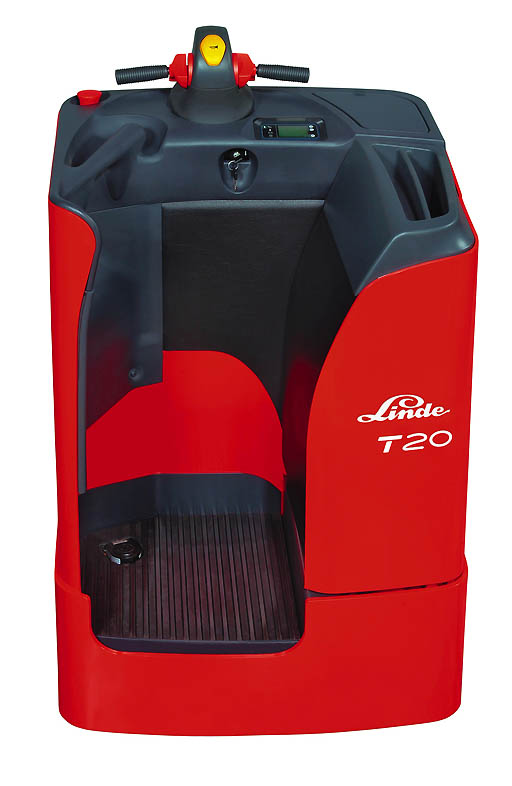

The T14 S, T20 – T25 S/SF pallet trucks have a particularly narrow chassis, barely wider than a pallet. Together with a precise electrical steering unit, this feature ensures that the pallet truck is perfectly maneuverable. You can increase handling capacity even in constricted spaces. The construction of the platform plays an important role. It is completely separate from the chassis and absorbs most vibration arising from uneven surfaces. The high standing position makes processes safer. From their position, the driver can keep an eye on the fork, and pick up pallets quickly. The T14 S, T20 – T25 S/SF pallet trucks have a maximum lifting capacity of 1400, 2000 or 2500 kg depending on the model.

Safety

  • Protective truck contours
  • Rugged chassis
  • Dead-man switch with load-dependent brake
  • Good view of the fork
  • Automatic speed adjustment around corners

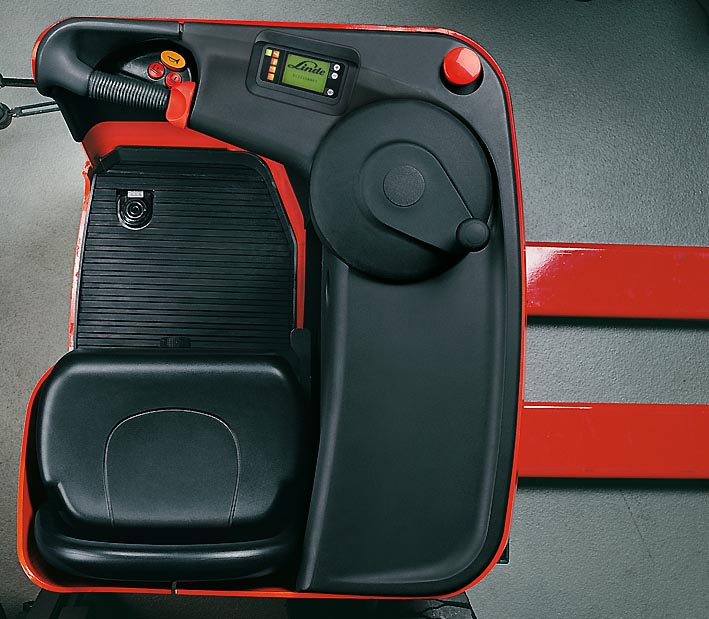

Ergonomics

  • Low-vibration platform
  • Padded backrest
  • Ergonomic and height-adjustable control unit

Handling

  • Powerful 3 kW three-phase motor
  • Alternative steering systems
  • Compact chassis
  • Good maneuverability
