Omnimax

“OmniMAX” is an excellent solution for the collection of waste and recyclable materials, enabling the safe handling of impressively large containers thanks to its robust rear-mounted lifting system.

The Olympus OmniMAX design features a range of outstanding functions and efficiency-enhancing benefits:

A multifunctional bin lifting system that allows containers of various sizes and/or types to be handled without adjustment

Gravity-assisted container lowering using stored kinetic energy, resulting in safer operation, reduced noise, and fuel savings

Low manual loading height, ideal for hand-loading bulky waste

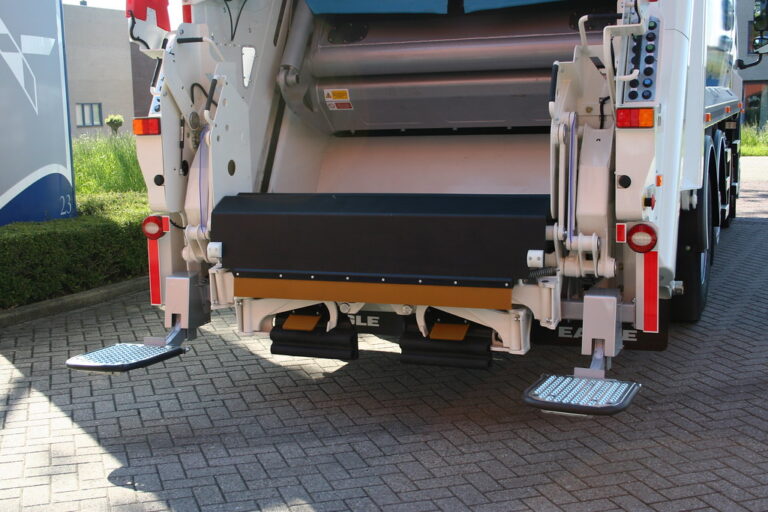

The container lifter is integrated into the “Olympus” rear door, reducing rear overhang by 400 mm

A flexible lower comb section designed to support the container, dampen movement, and reduce potential damage to both the container and the refuse collection vehicle

Specifications
Cycle time: 6-7 sec for 2-wheel containers; 10-12 sec for 4-wheel containers
Lifting capacity: 170 kg (split) / 750 kg (combined)
Noise level: < 65 dB(A) Mounting method: Integrated into the “Olympus” rear door Safety: CE Machinery Directive certification, EN 1501.1 and EN 1501.5 Operating mode: Automatic and manual Weight: 650 kg Hydraulic requirements: Maximum hydraulic flow 40 l/min, peak 60 l/min; 180 bar Automatic collection: Yes Diagnostic display: Yes
